Architectural (Building) Seismic Expansion Joint System

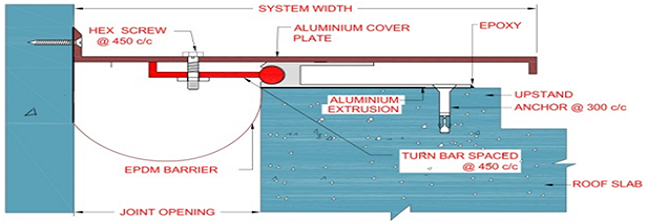

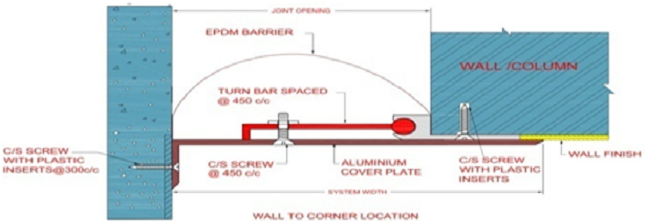

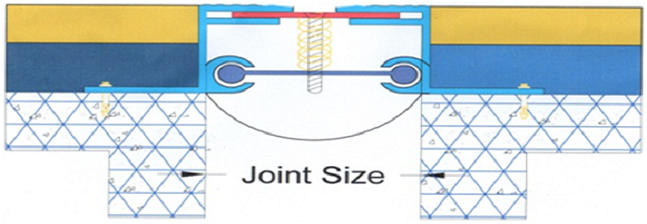

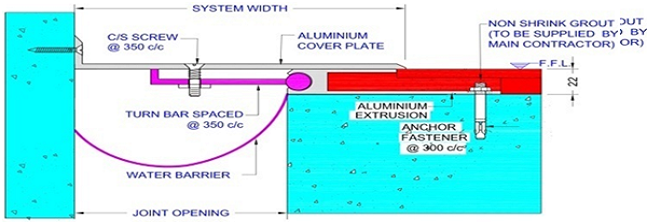

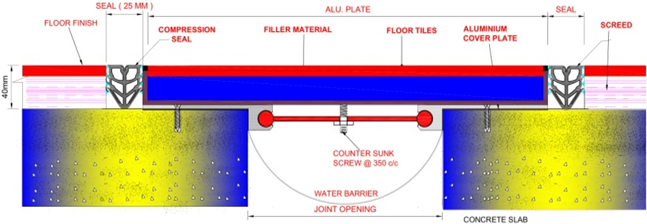

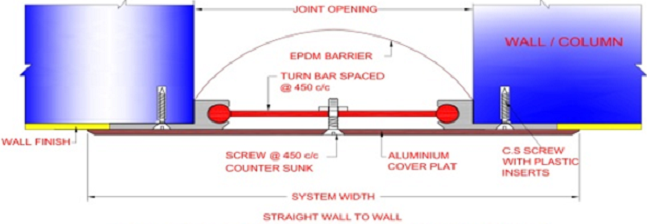

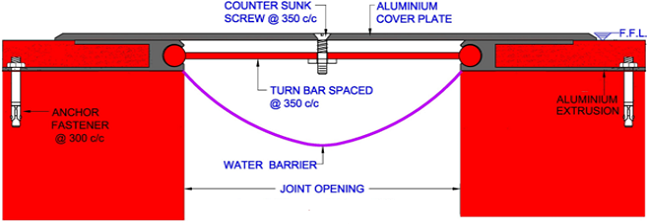

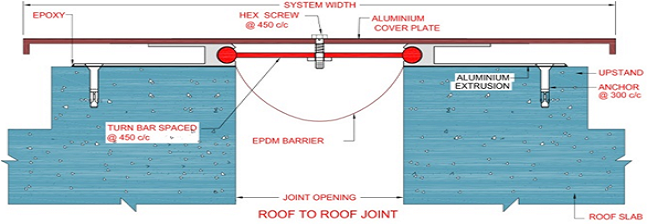

VRE Seismic Expansion Joint system shall be Mill finish Aluminum extruded for 25 MM to 500 MM expansion joints and up to +/- 50% of the joint width movement.

This is designed for full Seismic expansion system that is capable of accommodating thermal & multi-directional seismic movement without stress to its components movement.

The cover plate shall be designed of width and thickness required to satisfy movement and loading requirements and available in Aluminum & Stainless steel.
